PRODUCT

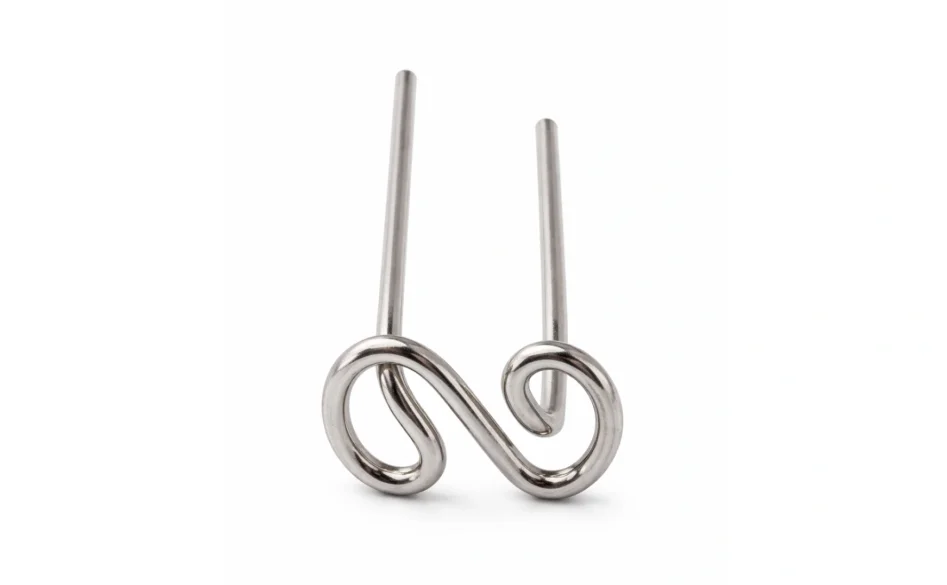

W FILAMENT

High purity tungsten filaments designed for semiconductor ion implantation equipment. Tungsten filaments provide excellent thermal stability and reliable electron emission in high temperature operating environments.

PRODUCT OVERVIEW

Tungsten filaments are widely used in semiconductor ion implantation systems where stable electron emission and high temperature resistance are required. Tungstenโ€™s extremely high melting point and mechanical strength make it suitable for demanding vacuum and plasma environments.

The filament structure allows efficient electron generation during ion implantation processes. High purity tungsten material supports consistent electrical performance and long operational lifetime in semiconductor manufacturing equipment.

SPECIFICATIONS

Purity: 3N5


Form: Filament


Dimensions: 0.8 mm / 1 mm / 2 mm


Composition: Tungsten (W)


Application: Tungsten filament for semiconductor ion implanter

APPLICATIONS

Tungsten filaments are used in semiconductor ion implantation systems where electrons are required to support ion beam generation and plasma stability. Their ability to operate at extremely high temperatures makes them suitable for vacuum environments used in semiconductor processing.

These filaments are commonly integrated into ion implantation equipment used in advanced microelectronics manufacturing.

CUSTOMIZATION OPTIONS

Tungsten filaments can be supplied in different wire diameters and configurations depending on the specific ion implantation equipment requirements. Dimensions and filament structures can be adapted to match system design and operating conditions.

Customization options may include variations in filament geometry to optimize electron emission and operational lifetime.

TECHNICAL FEATURES

Tungsten filaments provide exceptional thermal resistance and mechanical stability in high temperature environments. The material maintains structural integrity and stable electrical performance during continuous operation.

High purity tungsten supports reliable electron emission and consistent performance in semiconductor ion implantation processes.
